Dynamixel RX-64
  • Mon-Fri 8:00-5:00pm (GMT-7)

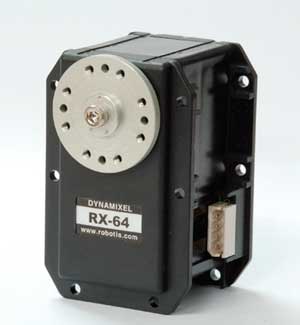

RX-64

RX-64

$279.00
All Dynamixels are shipped with a default ID of 1. You must an assign an ID to each Dynamixel on your network!
Quantity Price/Ea. Total
1 $279.00 $279.00
6 $265.00 $1,590.00
10 $253.00 $2,253.00
Please contact sales for orders of 51 or more.
We have many bracket options for the RX-64. See below.

Need a price quote with shipping or PO?

  • For a price quote with shipping, click a purchase button.
  • Enter the billing and shipping address.
  • Select a credit card type.
  • A credit card number is NOT required for a price quote.
  • Select a shipping method.
  • Print the price quote.
How to place a purchase order.

RX Series of servos – no limits!

  • Designed by Matt Bunting - Robotics and Neural Systems Laboratory (or RNSL) at the University of Arizona


    • Manuals and Software

    Check Nomad RoverRX-64 Manual (pdf) contains detailed Dynamixel network protocol information. If you need help, please post your technical questions on CrustCrawler Support forums.
    Check RX-28 and RX-64 Schematic (CAD Drawing)
    Check USB2Dynamixel SDK - This SDK written by Robotis and provides USB2Dynamixel interface guidance for LabVIEW, MATLAB, JAVA, Visual Basic, C/C++, C#, JAVA, Python.
    Check Open source C# classes from Scott Ferguson at Forest Moon Productions. These .NET classes run from a Windows PC connected to a USB2Dynamixel, FTDI based hardware, or RS-232 to RS-485 converter. Scott's classes are very well written and the documentation is excellent.
    Check Dynamixel Commander is another creation from Forest Moon Productions. The Dynamixel Commander is a wonderful Dynamixel configuration tool.

    RX-64 Specifications

    Weight 4.1oz. (116g)
    Gear Ratio 1/200
    Motor Maxon
    Input Voltage 15V 18V
    Max Holding Torque 735.6 oz-in
    53 kg-cm    		 888.3 oz-in
    64 kg-cm
    Sec/60degree 0.198 0.162

    Aluminum bracket assemblies for the RX-64 Print

    RX-64 & RX-28 Smart Bracket Quick Reference Guide (192K pdf)
    OF-64B View (pdf) OF-64S View (pdf) OF-64S2 View (pdf)
    $35.29 $20.00 $20.00
    OF-RX64H Set $40.00 (pdf)
    • frame
    • bearing
    • horn idle
    • cap bearing
    • screw set
    		 Horn 64T $22.35 (pdf)
    • hornbearing
    • screw set

    RX-64 RX-64 and RX- 28
    RX-64 with Brackets RX-64 and RX-28 with Brackets

    RX-64 Controller Options

    USB2Dynamixel

    Open Source Code, binaries, and documentation
    USB2Dynamixel

    The USB2Dyanmixel requires an external power source. Dynamixels can NOT be powered from a PC USB port! See theRX-28 Manual (pdf) (pdf),

    USB2Dynamixel Software Development Kit (SDK)

    USB2Dynamixel SDK - This SDK written by Robotis and provides USB2Dynamixel interface guidance for LabVIEW, MATLAB, JAVA, Visual Basic, C/C++, C#, JAVA, Python.

    USB2Dynamixel SDK

    Forest Moon C# Source Code

    Open source C# classes from Scott Ferguson at Forest Moon Productions. These .NET classes run from a Windows PC connected to a USB2Dynamixel, FTDI based solutions. Scott's classes are very well written and the documentation is excellent.

    Dynamixel Commander is another creation from Forest Moon Productions. The Dynamixel Commander is a wonderfully useful Dynamixel configuration tool.

    Parallax Propeller

    Open Source Code, binaries, and documentation
    Propeller

    The Parallax Propeller requires an external power source! See the AX-12 manual (pdf) or Connecting the BASIC Stamp To a AX-12 Dynamixel Bus rev1.2 (pdf) by John Raffensperger.

    CrustCrawler DynaBus Embedded for the Propeller

    The Parallax Propeller can take input form many different types of devices; PCs, microcontrollers, hardware switches... The Propeller makes for a very open and robust solution. check out the Parallax object exchange for tons of open source solutions for the Propeller.



    USB2Dynamixel Software Development Kit (SDK)

    USB2Dynamixel SDK - This SDK written by Robotis and provides USB2Dynamixel interface guidance for LabVIEW, MATLAB, JAVA, Visual Basic, C/C++, C#, JAVA, Python.

    USB2Dynamixel SDK

    Forest Moon C# Source Code

    Open source C# classes from Scott Ferguson at Forest Moon Productions. These .NET classes run from a Windows PC connected to a USB2Dynamixel, FTDI based solutions. Scott's classes are very well written and the documentation is excellent.

    Dynamixel Commander is another creation from Forest Moon Productions. The Dynamixel Commander is a wonderfully useful Dynamixel configuration tool.

    Overview

    Dynamixel RX-64RX-28
    The RX-28 is a powerful smart actuator that packs 523.3 oz-in (37.3 kg-cm) of torque from a precision Maxon RE-MAX DC motor. The intelligent control hardware reports position , temperature, load, & input voltage. The RX series actuator has an extensive command set that allows synchronized movements of up to 254 units on a single RS-485 bus.

    Precision Control
    1024 units of position, speed, and torque resolution.

    Feedback
    Angular position, angular velocity, input voltage, and torque feedback.

    Alarm System
    Alert the user or automatically shutdown when internal temperature, torque, or voltage parameters deviate from defined ranges.

    Communication
    The RS-485 bus supports communication speeds up to 1M bps.

    Distributed Control
    Control multiple RX-28 parameters with a single command packet.

     Material
    All metal gearing with an aluminum servo arm.

    Status LED
    Report errors to the user or troubleshoot bus connectively.
