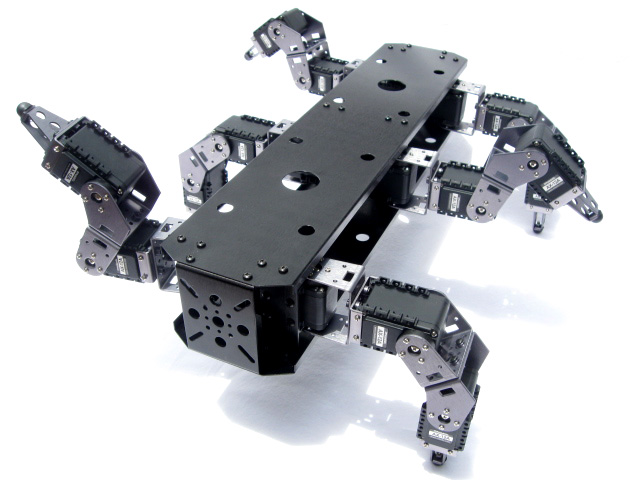

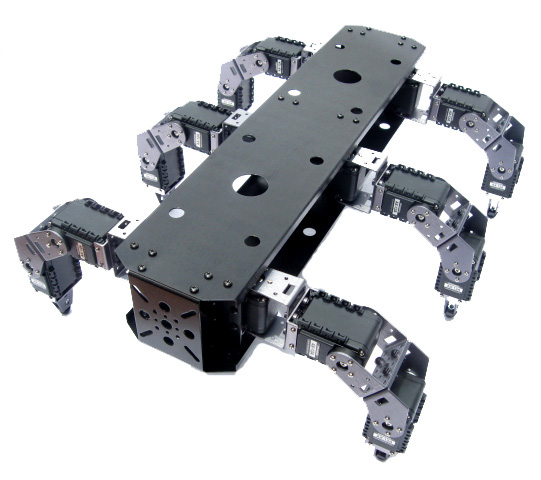

AX-12A / AX-18A Smart Hexapod

This kit has been discontinued

(Programming and Video provided by Matt Bunting - University of Arizona)

AX12-18 Smart Hexapod Technical Specifications ROBOT Magazine AX12-18 Smart Hexapod Overview ROBOT Magazine AX12-18 Smart Hexapod Full Review

The AX12-18 Smart Hexapod is the next generation of walkers to implement "Smart Servo" Technology which features:

  • Power Optimized 3DOF (3-degrees of Freedom) Leg Design with over 220 oz/in.(15kgf/cm)of torque per axis
  • Full feedback for position, speed, load, voltage and temperature with automatic shutdown based on voltage or temperature
  • Full control over position (300 degrees), speed, and torque in 1024 increments
  • Fast 1M bps communication speed
  • Rugged, all aluminum construction for maximum payload capacity and walking kinematic accuracy
  • Spacious upper and lower decks (16in. X 3.5in.)(40.64cm X 8.89cm) for controlling electronics, power and accessories
  • Hard Anodized finish for maximum scratch and corrosion resistance
  • Compatible with ANY micro-controller/computer control system
Are you a School, University or Business? Click here to go to our purchase order page with information on how to place your purchase order with Crustcrawler

Pictures

Power Optimized Leg Design Outstanding ground clearance Roomy decks for power and electronics Full leg articulation - Legs folded
AX12-18 Smart Hexapod Kit Configurations
  • AX12-18Smart Hexapod

    Hardware Kit

    AXHexapodHW

    • (1) AX Smart Hexapod Hardware kit (64 piece, all aluminum components)
    • (2) 6-port extension bus PCB's
    • (10) 7.86" (200mm) 3 pin cables
    • (1) Fully Illustrated Construction Guide
    • Note: This kit requires any combination of (18) AX-12A or AX-18A servos
    $499
    Purchase
  • AX-18F Robotic ArmHardware Kit

    Hardware Kit w/AX12A

    AX12HexapodBK

    • (1) AX Smart Hexapod Hardware kit (64 piece, all aluminum components)
    • (2) 6-port extension bus PCB's
    • (10) 7.86" (200mm) 3 pin cables
    • (18) AX-12A Servos (15kgf/cm and 59 rpm)
    • (1) Fully Illustrated Construction Guide
    $1,219.00
    Purchase
  • AX-18F Robotic ArmHardware Kit

    Hardware Kit w/AX18A

    AX18HexapodBK

    • (1) AX Smart Hexapod Hardware kit (64 piece, all aluminum components)
    • (2) 6-port extension bus PCB's
    • (10) 7.86" (200mm) 3 pin cables
    • (18) AX-18A Servos (18kgf/cm and 97 rpm)
    • (1) Fully Illustrated Construction Guide
    $1,999.00
    Purchase
Controllers
  • CM-700

    CM-700 Controller

    See the CM-700 Product Page for more information.

    $119.90
    Purchase
  • LN-101

    LN-101 USB Downloader

    • This special USB connector is required to connect the CM-700 to a computer USB port.
    • (1) LN-101 USB Downloader
    • (1) 100cm USB cable
    • LM-101 Users Guide
    $14.90
    Purchase
  • OpenCM9.04-B

    OpenCM9.04-B

    • Controller: OpenCM9.04-C x 1
    • Socket - 1x20 PIN Header Socket x 2
    • Socket - 1x20 BOX Header Socket x 2
    • Cable - USB Downloader Cable x 1
    • Manual - Instruction Manual x 1

    See the OpenCM9 product page for more information.

    OpenCM9.04-B
    $19.90
    Purchase
  • usb2dynamixel

    USB2Dynamixel

    • USB2Dyanmixel provides USB to RS-232, RS-485, and AX-12 (TTL) interfaces in one unit.
    • (1) USB2dynamixel Controller
    • (1) USB cable

    See the USB2Dynamixel Product Page for more information.

    $49.90
    Purchase
Accessories
  • AX-12+ / AX-18F Power supply Kit

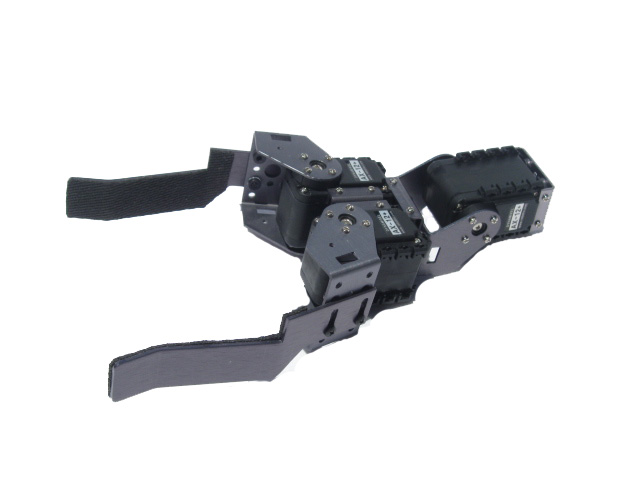

    Dual Gripper H/W Kit

    Dual Gripper Hardware Kit

    The Ax Dual Gripper makes a great addition to the AX12-18 Smart Hexapod. With the AX-45 degree bracket, it can easily pick up an object from the ground from a standing position. Also with a 9"(22.86cm) opening, the Dual Gripper kit can pick up large objects.

    Note: This kit requires any combination of (3)AX-12A or AX-18A servos

    $79.00
    Purchase
  • Dual Gripper Kit

    AX-12A Dual Gripper

    Dual Gripper Hardware Kit w/AX-12A Servos

    The Ax Dual Gripper makes a great addition to the AX12-18 Smart Hexapod. With the AX-45 degree bracket, it can easily pick up an object from the ground from a standing position. Also with a 9"(22.86cm) opening, the Dual Gripper kit can pick up large objects.

    $209.00
    Purchase
  • Dual Gripper Kit

    AX-18A Dual Gripper

    Dual Gripper Hardware kit w/AX-18A Servos

    The Ax Dual Gripper makes a great addition to the AX12-18 Smart Hexapod. With the AX-45 degree bracket, it can easily pick up an object from the ground from a standing position. Also with a 9"(22.86cm) opening, the Dual Gripper kit can pick up large objects.

    $359.00
    Purchase
  • AX-12

    AX-12/18F 12" Extension cable

    AX12A/AX18A 12"(30.48cm) Extension Cable

    • (1) 12" AX-12/18F Extension Cable
    $9.49
    Purchase
  • AX-12 Power supply

    AX-12A/AX-18A Power Supply

    9 Volt/6amp power supply provides plenty of power for the AX12-18 Smart Hexapod during testing and programming

    • (1) 9Volt/6Amp Power Supply

    Note: This power supply requires the AX12A/AX18A Power Supply Harness below.

    $89.00
    Purchase
  • AX-12+ / AX-18F Power Harness

    AX-12A/AX-18A Power Harness

    The AX-12 power harness makes powering the AX-12A-18 Hexapod quick and easy! Combine this connector with CrustCrawler's AX-12A/AX18A power supply for a complete AX power system.

    • (1) Power Harness
    • (1) 2.1mm male P5 barrel plug
    • (2) 3 pin molex connectors for easy AX-12A / AX-18A and USB2Dynamixel connections
    $25.00
    Purchase
  • Flexiforce Pressure Sensor

    Flexiforce Pressure Sensor

    The active sensing area is a .375" diameter circle at the end of the sensor. The conductive leads are easy to connect to a breadboard or through-hole area. The Flexiforce has an ideal output for A/D conversion - 0V is no force and 4.2V is 100 lbs. The RCTIME command may be used with a LOOKUP table or calibration formula to execute some math to make the output useful.

    • (1) Flexiforce Pressure Sensor
    $34.95
    Purchase
  • Ping Ultr Sonic Sensor

    Ping Ultra Sonic Sensor

    $29.99
    Purchase
