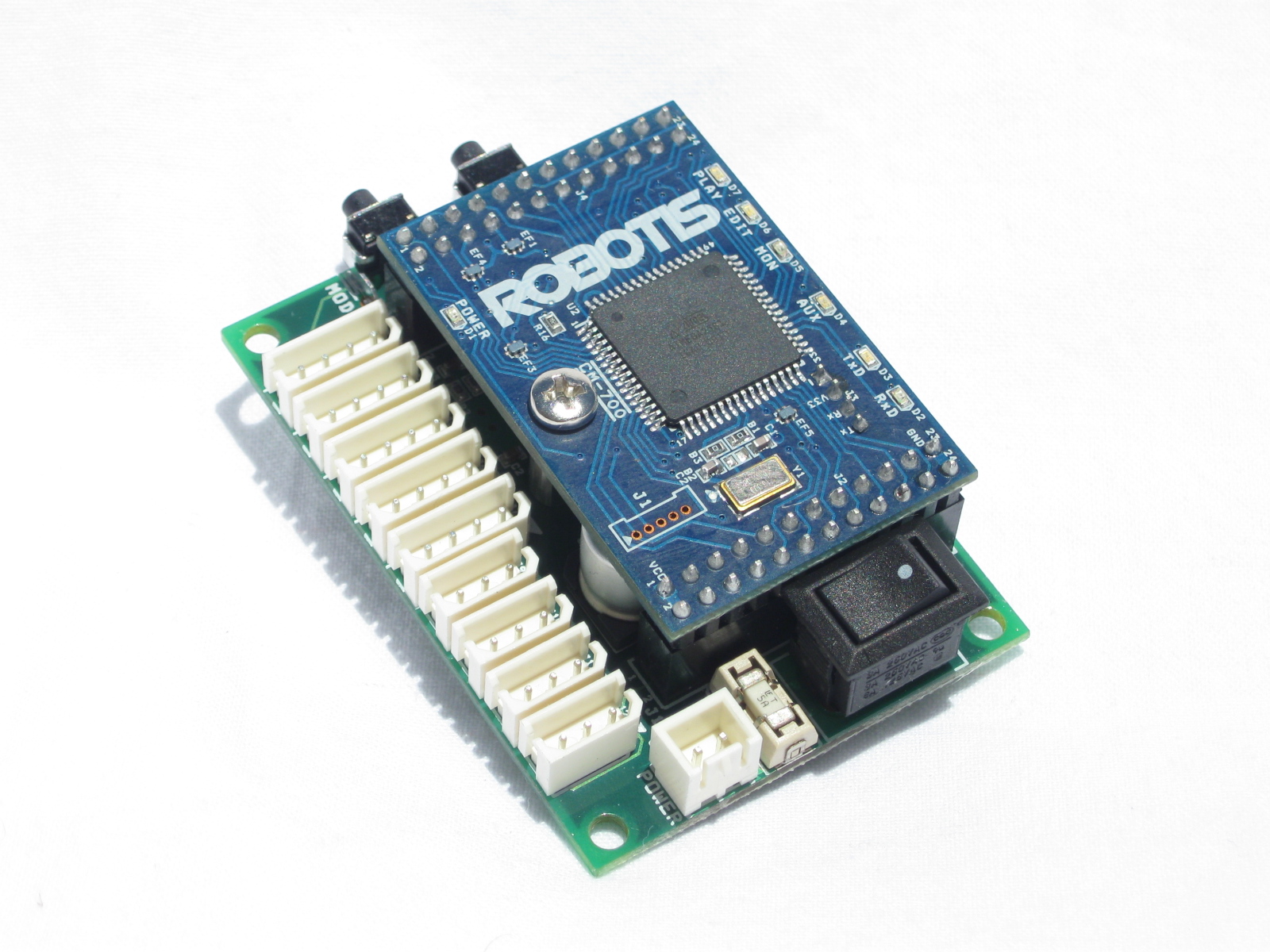

CM-700

CM-700 Technical Specifications

  • CM-700 kit includes CM-700 module, CD-ROM which includes the powerful Roboplus Task, Manager and Motion editor software, Mounting kit and interface cable
  • TTL/RS485 Communication with Zig 110 Connector
  • Weight: 37.3g
  • Controller: ATMega2561
  • Working Voltage Range - 7 - 35 Volts
  • Idle Current: 40ma
  • Exterior I/O Maximum Current: 0.9A
  • Overall Maximum current: 10Amps (Fuse)
  • Working Temperature: -5C to 70C
  • Sensors: 2 - (1) Temperature & (1) Voltage
  • OLLO Peripheral Device compatible - (6) 5-pin I/O ports
  • Dynamixel 3-pin ports: (4)
  • RS-485 Ports: (5)
  • Be sure to visit the Robotis Support Web site for the latest drivers and software for the CM-700
Are you a School, University or Business? Click here to go to our purchase order page with information on how to place your purchase order with Crustcrawler
CM-700 Accessories
  • LN-101

    LN-101 USB Downloader

    • This special USB connector is required to connect the CM-700 to a computer USB port.
    • (1) LN-101 USB Downloader
    • (1) 100cm USB cable
    • LM-101 Users Guide
    With R-Type Servo
    $11.90
    Purchase
