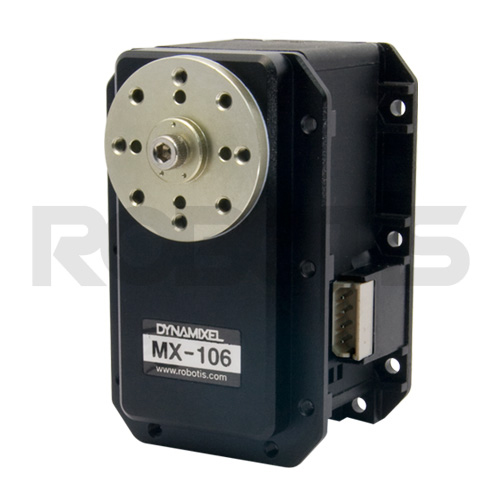

Dynamixel MX-106R, MX-106T

MX-106R New!

• (1) MX-106R Actuator (RS-485) featuring the new contactless, absolute encoder, 360 degree position control without dead zone, 4,096 precise resolution by 0.088 degrees, High baud rate up to 3Mbps
• (1) Mounting Screw / nut kit
• (1) Interface cable

Please contact our sales department for discounted orders of 10 or more.

MX-106R Bulk Pack New!

• (6) MX-106R Actuators in bulk form
• Note: No interface cables, screw sets or servo horns

MX-106T New!

• (1) MX-106T Actuator (TTL) featuring the new contactless, absolute encoder, 360 degree position control without dead zone, 4,096 precise resolution by 0.088 degrees, High baud rate up to 3Mbps
• (1) Mounting Screw / nut kit
• (1) Interface cable

Please contact our sales department for discounted orders of 10 or more.

MX-106T Bulk Pack New!

• (6) MX-106T Actuators in bulk form
• Note: No interface cables, screw sets or servo horns

CM-700 Controller

• (1) CM-700 Control Module
• (1) CD-ROM with CM-700 Control Software including RoboPlus Task, Motion and Manager Control
• (1) Mounting Screw / nut kit
• (1) Interface cable

LN-101 USB Downloader

• This special USB connector is required to connect the CM-700 to a computer USB port.
• (1) LN-101 USB Downloader
• (1) 100cm USB cable

OpenCM9.04-B

• Controller: OpenCM9.04-C x 1
• Socket - 1x20 PIN Header Socket x 2
• Socket - 1x20 BOX Header Socket x 2
• Cable - USB Downloader Cable x 1
• Manual - Instruction Manual x 1

See the OpenCM9 product page for more information.

U2D2

• U2D2 provides USB to RS-232, RS-485, and AX-12 (TTL) interfaces in one unit.
• (1) U2D2 Controller
• (1) USB cable

See the U2D2 Product Page for more information.

Replacement Gear Set

• Replacement Gear Set for the MX-106R and MX-106T

FR08-H110 Bracket

• (1) FR08-H110 Bracket
• This bracket mounts to the Servo Horn and bearing of (2) MX-106 servos to create a movable hinge

FR08-H110K

• (1)FR08-H110K Bracket
• This bracket mounts to the Servo Horn and bearing of (2) MX-106 servos to create a movable hinge (anodized black)

FR08-X101K

• (1) FR08-X101K Bracket
• This bracket mounts between (2) MX-106 servos which allows one MX-106 servo to be mounted sideways to the other

FR08-H101K

• (1) FR08-H101K Bracket
• This bracket mounts to the Servo Horn and bearing of the MX-106 to make a movable hinge (anodized black)

FR08-H101

• (1) FR08-H101 Bracket
• This bracket mounts to the Servo Horn and bearing of the MX-106 to make a movable hinge

FR08-D101K

• (1) FR08-D101K Bracket
• This bracket mounts between (2) MX-106 servos back to back

FR08-B101K

• (1) FR08-B101K Bracket
• This bracket mounts to the back of the MX-106 for mounting to an object or another MX-106

12in. (30.48cm) 3-pin wire extension

• (1) 12in. (30.48cm) 3-pin wire extension
• This wrie extensions can be used with the AX-12A, AX-18A, MX-28T, MX-64T and MX-106T Actuators

24in. (60.96cm) 3-pin wire extension

• (1) 24in. (60.96cm) 3-pin wire extension
• This wrie extensions can be used with the AX-12A, AX-18A, MX-28T, MX-64T and MX-106T Actuators

12in. (30.48cm) 4-pin wire extension

• (1) 12in. (30.48cm) 4-pin wire extension
• This wrie extensions can be used with the MX-28R, MX-64R and MX-106R Actuators

20in. (50.8cm) 4-pin wire extension

• (1) 20in. (50.8cm) 4-pin wire extension
• This wrie extensions can be used with the MX-28R, MX-64R and MX-106R Actuators

Pro-Series Power Supply

12 Volt/5amp power supply provides plenty of power for the Pro-Series Robotic Arm Components

• (1) 12 Volt/5Amp Power Supply (optional Power Harness Below)

Power Harness

The power harness makes powering the Crustcrawler Pro Series Smart Robotic Arm quick and easy!

• Compatible with the 3-pin TTL actuators - AX-12A, AX-18A, MX-28T, MX-64T, MX-106T
• (1) Power Harness
• (1) 2.1mm male P5 barrel plug
• (2) 3 pin molex connectors for easy AX/MX Actuator and USB2Dynamixel / processor connections
