ROV\UAV Thrusters

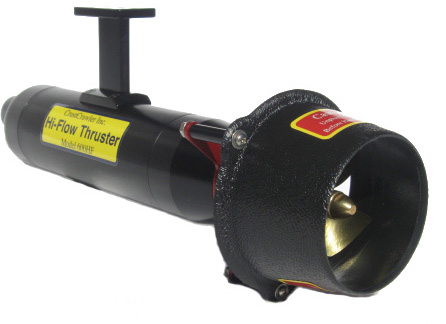

600HF Hi-Flow Thruster Right Hand Propeller (HFT-R)

Ships with the following:

• (1) Assembled and tested 600HF Hi-Flow Thruster with female Sea-Con Connector
• (1) Sea-Con 30” Male Whip Cable
• Note: Purchasing 1 - 6 thrusters requires the purchase of (1) grease and applicator kit (under the accessories Tab)

See page 15 of the user's guide for a description of left and right hand configured thrusters.

Ships with the following:

600HF Hi-Flow Thruster Left Hand Propeller (HFT-L)

• (1) Assembled and tested 600HF Hi-Flow Thruster with female Sea-Con Connector
• (1) Sea-Con 30” Male Whip Cable
• Note: Purchasing 1 - 6 thrusters requires the purchase of (1) grease and applicator kit (under the accessories Tab)

See page 15 of the user's guide for a description of left and right hand configured thrusters.

Ships with the following:

600HF Hi-Flow Thruster-4-Pack

• (4) Assembled and tested 600HF Hi-Flow Thrusters with female Sea-Con Connectors
• (4) Sea-Con 30” Male Whip Cable
• Note: Purchasing 1 - 6 thrusters requires the purchase of (1) grease and applicator kit (under the accessories Tab)

See page 15 of the user's guide for a description of left and right hand configured thrusters.

Ships with the following:

600HF Hi-Flow Thruster-6-Pack

• (6) Assembled and tested 600HF Hi-Flow Thrusters with female Sea-Con Connectors
• (6) Sea-Con 30” Male Whip Cable
• Note: Purchasing 1 - 6 thrusters requires the purchase of (1) grease and applicator kit (under the accessories Tab)

See page 15 of the user's guide for a description of left and right hand configured thrusters.

Ships with the following:

Phoenix EDGE HV60 UROV Firmware Upgraded Electronic Thrust Controller with Data Logging - Non Potted

• (1) Phoenix EDGE HV60 UROV Firmware Upgraded / Programmable Electronic Thrust Controller (Max 50V) with data logging
• Contains custom firmware developed specifically for Crustcrawler's 400HFS-L and 600HF thrusters with foward/reverse, soft start and reverse throttle amount features
• New data logging feature provides data aqusition for Voltage, Ripple, Current, Amp hrs., Watts, Temperature, motor RPM, Throttle In and Power Out
• Phoenix EDGE Dimensional Information

Ships with the following:

Phoenix EDGE HV60 UROV Firmware Upgraded Electronic Thrust Controller 50V Rating - Potted

• (1) Phoenix EDGE HV60 UROV Firmware Upgraded / Waterproof Programmable Electronic Thrust Controller (Max 50V) with data logging
• Contains custom firmware developed specifically for Crustcrawler's 400HFS-L and 600HF thrusters with foward/reverse, soft start and reverse throttle amount features
• New data logging feature provides data aqusition for Voltage, Ripple, Current, Amp hrs., Watts, Temperature, motor RPM, Throttle In and Power Out
• Dimensions - 4.75in X 2.71in X 1.50in (12.06cm X 6.88cm X 3.81cm)
• (1) Phoenix 120 Users Guide

Ships with the following:

Phoenix EDGE HV60 UROV Firmware Upgraded Electronic Thrust Controller 3- Pack - Potted

• (3) Phoenix EDGE HV60 UROV Firmware Upgraded / Waterproof, Programmable Electronic Thrust Controllers (Max 50V) with data logging
• Contains custom firmware developed specifically for Crustcrawler's 400HFS-L and 600HF thrusters with foward/reverse, soft start and reverse throttle amount features
• New data logging feature provides data aqusition for Voltage, Ripple, Current, Amp hrs., Watts, Temperature, motor RPM, Throttle In and Power Out
• (1) Phoenix User Guide

Ships with the following:

Electronic Thrust Controller Programming Kit (etc-pc)

• Allows the user to easily and quickly customize throttle curves, forward and reverse amount and voltage cutoff settings for the Phoenix and Hydra line of thruster controllers. Connects to your computer by a USB port.
• (1) Electronic Thrust Controller Programming kit with USB interface
• (1) USB cable
• (1) Instruction manual

18 Port Pololu Mini Maestro Servo Controller

• Control up to 18 thruster controllers from a single interface
• Free configuration and control program is available for Windows and Linux
• (1) Pololu Mini Maestro Servo Controller
• See the Pololu product page for more information

Ships with the following: New!

Thruster Mounting Bracket

• (1) 600HF Thruster Mounting Bracket
• (4 each) 1" (25.41mm) #4 (4/40) Mounting screws, nuts and lock-washers
• 600HF Thruster Mounting Bracket Technical Information

Ships with the following:

White Lithium Grease

• (1) 8oz.(277grams) White Lithium Grease
• (1) Grease applicator
• Note: The grease and applicator kit is required for all 600HF and 400HFS-L Thrusters

Ships with the following:

Spare Kort Nozzle

• (1) Spare Kort Nozzle

Ships with the following:

600HF Head w/Right Hand Prop

• (1) Factory pre-built and tested 600HF-Flow Thruster Replacement Head with Right Hand Propeller
• Everything you need to quickly replace the thruster core motor / thruster head in less than 30 minutes
• Protect your investment in the field with these easy to install motor / thruster head replacements

Ships with the following:

600HF Head w/Left Hand Prop

• (1) Factory pre-built and tested 600HF-Flow Thruster Replacement Head with Left Hand Propeller
• Everything you need to quickly replace the thruster core motor / thruster head in less than 30 minutes
• Protect your investment in the field with these easy to install motor / thruster head replacements

Ships with the following:

Pressure Compensation Kit (HFT-pc)

• (1) Brass hose adaptor with o-ring
• (2) Brass hose clamps
• (1) 6” tubing
• (1) Brass tubing end cap
