UROV\UAV Thrusters

Ask about our special discounts for Robosub, MATE and University purchases!

Order Yours Below!

Hi-Flow Thruster 400HFS-L Data Sheet 400HFS-L Thrust VS Current Data Sheet 400HFS-L User's Guide 400HFS-L Mounting Bracket Specifications StockBridge High School Project

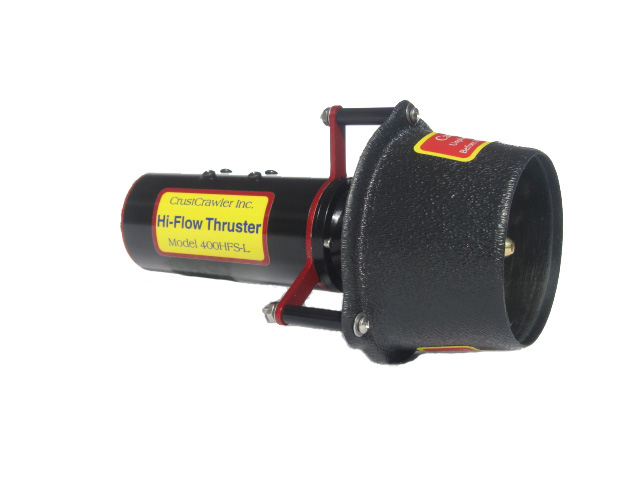

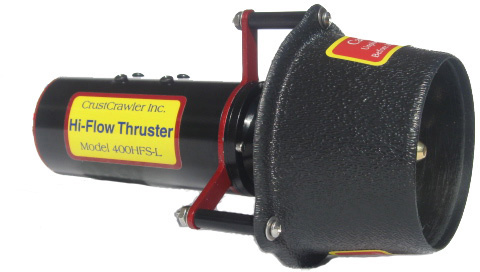

400HFS-L UROV/ ROV Thruster Specifications

Operating Voltage range - 12 to 50 volts
Excellent choice for MATE and Robosub UROV competitions!
300ft (100m) depth rating
Powerful/efficient 400W brushless motor with a 4.28:1 gear ratio
Compact Design (6.25 in.(158mm) long)
Features the same multistagelip seal technology as used on our 600HF Thrusters
2.36"(60mm)”, 4 blade, brass propeller mated with a aluminum propeller adapter
Propeller is efficient in both forward and reverse thrust
Type II hard anodized finish for maximum corrosion resistance in salt and fresh water
Rugged 6061 aluminum thruster housing
Features our new, Pre-sealed, 3 wire connectors to any brushless motor controller
High reliablity, low maintenance design
Optional Thruster Mounting Bracket for easy "bolt on" installations
400HFS-L Thruster IGS Model
400HFS-L Thruster STEP Model

Are you a School, University or Business? Click here to go to our purchase order page with information on how to place your purchase order with Crustcrawler

400HFS-L Hi-Flow Thruster and ETC Configuration Software

400HFS-L Thrusters
Accessories

400HFS-L Thrusters

Hi-Flow Thruster - right hand propeller (HFT-R)

Ships with the following:
- (1) Assembled and tested 400HFS-L Hi-Flow Thruster with right hand propeller
- Note: This thruster package requires the grease and applicator kit (under the accessories Tab)
See page 13 of the user's guide for a description of left and right hand configured thrusters.

$599.00
Purchase
Hi-Flow Thruster - left hand propeller (HFT-L)

Ships with the following:
- (1) Assembled and tested 400HFS-L Hi-Flow Thruster with left hand propeller
- Note: This thruster package requires the grease and applicator kit (under the accessories Tab)
See page 13 of the user's guide for a description of left and right hand configured thrusters.

$599.00
Purchase
Hi-Flow Thruster 3-Pack

Ships with the following:
- (3) Assembled and tested 400HFS-L Hi-Flow Thrusters
- (1) 8oz.(277grams) White Lithium Grease and Applicator
See page 13 of the user's guide for a description of left and right hand configured thrusters.

$1,797.00
Purchase
Hi-Flow Thruster 6-Pack

Ships with the following:
- (6) Assembled and tested 400HFS-L Hi-Flow Thrusters
- (1) 8oz.(277grams) White Lithium Grease and Applicator
See page 13 of the user's guide for a description of left and right hand configured thrusters.

$3,594.00
Purchase

Accessories

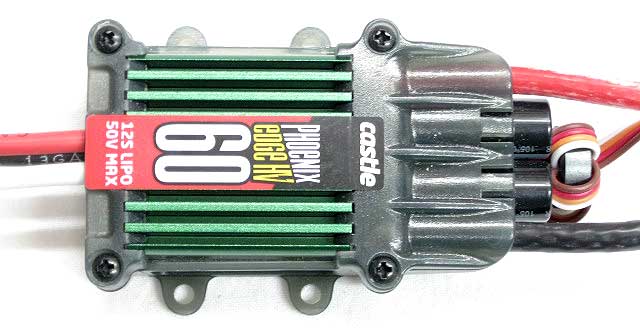

Phoenix EDGE HV60 UROV Firmware Upgraded Electronic Thrust Controller with data logging - Non Potted

Ships with the following:
- (1) Phoenix EDGE HV60 UROV Firmware Upgraded / Programmable Electronic Thrust Controller (Max 50V) with data logging
- Contains custom firmware developed specifically for Crustcrawler's 400HFS-L and 600HF thrusters with foward/reverse, soft start, programmable throttle curves and reverse throttle amount features
- New data logging feature provides data aqusition for Voltage, Ripple, Current, Amp hrs., Watts, Temperature, motor RPM, Throttle In and Power Out
- Phoenix EDGE Dimensional Information
$149.95
Purchase
Phoenix EDGE HV60 UROV Firmware Upgraded Electronic Thrust Controller 50V Rating - Potted

Ships with the following:
- (1) Phoenix EDGE HV60 UROV Firmware Upgraded / UROV Waterproof Programmable Electronic Thrust Controller (Max 50V) with data logging
- Contains custom firmware developed specifically for Crustcrawler's 400HFS-L and 600HF thrusters with foward/reverse, soft start and reverse throttle amount features
- New data logging feature provides data aqusition for Voltage, Ripple, Current, Amp hrs., Watts, Temperature, motor RPM, Throttle In and Power Out
- Dimensions - 4.75in X 2.71in X 1.50in (12.06cm X 6.88cm X 3.81cm)
$199.00
Purchase
Phoenix EDGE HV60 UROV Firmware Upgraded Electronic Thrust Controller 3- Pack - Potted

Ships with the following:
- (3) Phoenix EDGE HV60 UROV Firmware Upgraded / Waterproof, Programmable Electronic Thrust Controllers (Max 50V) with data logging
- Contains custom firmware developed specifically for Crustcrawler's 400HFS-L and 600HF thrusters with foward/reverse, soft start and reverse throttle amount features
- New data logging feature provides data aqusition for Voltage, Ripple, Current, Amp hrs., Watts, Temperature, motor RPM, Throttle In and Power Out
$597.00
Purchase

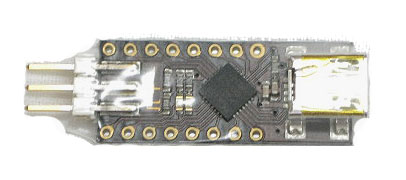

Electronic Thrust Controller Programming Kit (etc-pc)

Ships with the following:
- Allows the user to easily and quickly customize throttle curves, forward and reverse amount and voltage cutoff settings for the Phoenix and Hydra line of thruster controllers. Connects to your computer by a USB port.
- (1) Electronic Thrust Controller Programming kit with USB interface
- (1) USB Cable
- (1) Instruction manual
$39.00
Purchase
18 Port Pololu Mini Maestro Servo Controller
- Control up to 18 thruster controllers from a single interface
- Free configuration and control program is available for Windows and Linux
- (1) Pololu Mini Maestro Servo Controller
- See the Pololu product page for more information
Pololu Mini Maestro Servo Controller (Single)

$39.95
Purchase

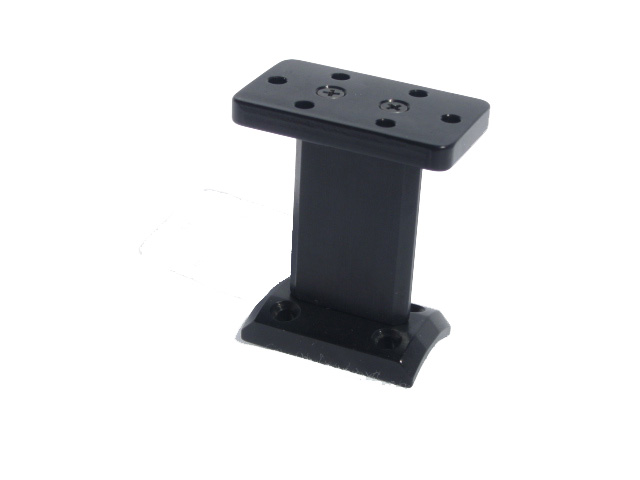

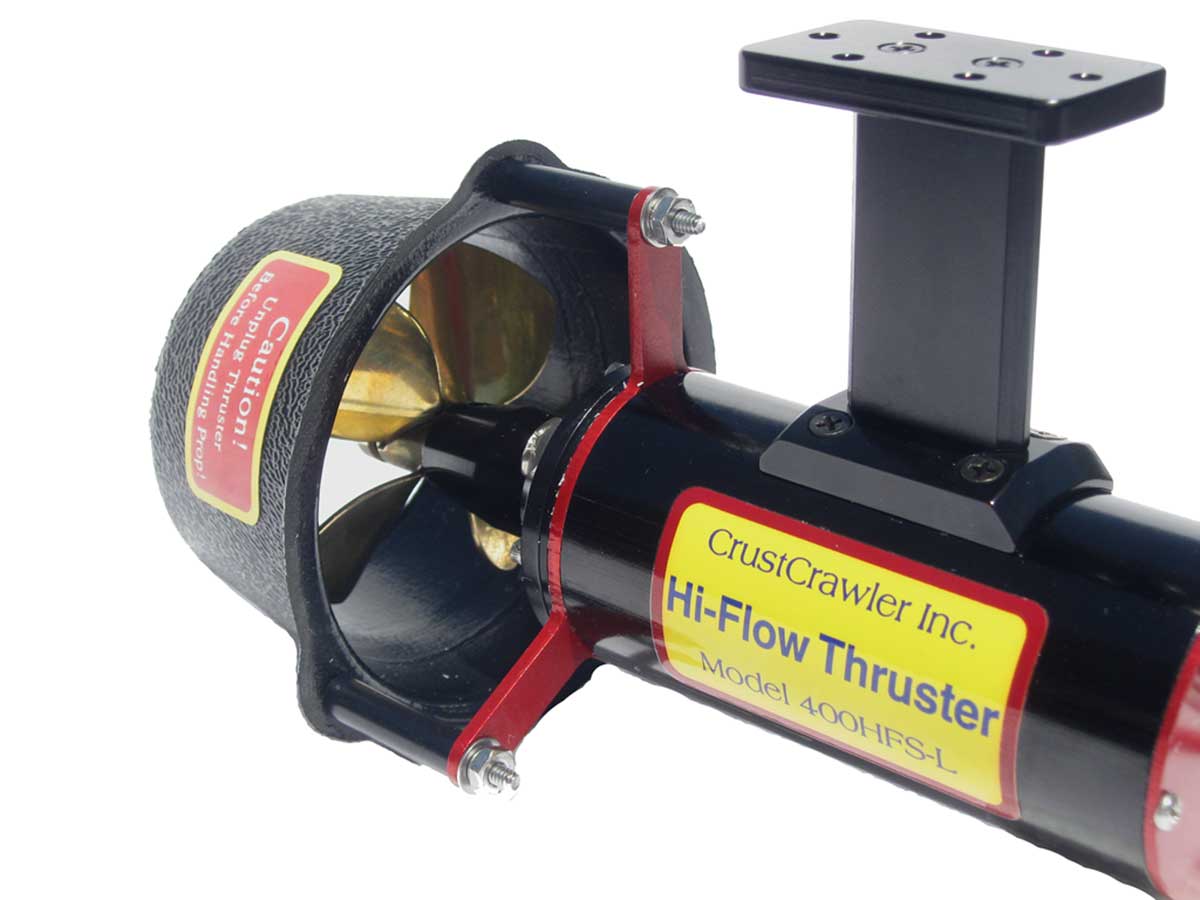

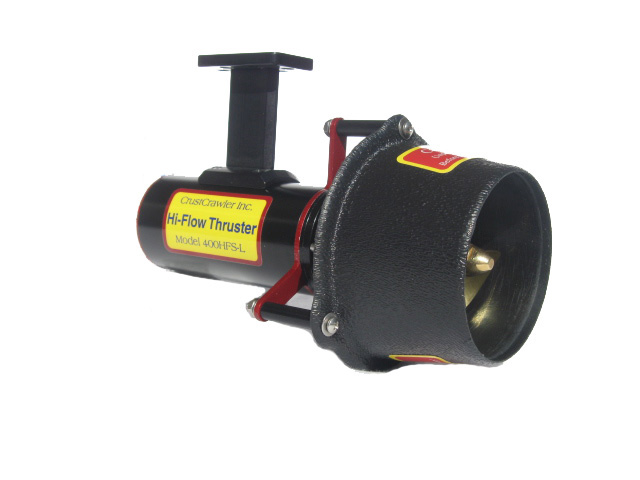

Thruster Mounting Bracket

Ships with the following: New!
- (1) 400HFS-L Thruster Mounting Bracket
- (4 each) 1" (25.41mm) #4 (4/40) Mounting screws, nuts and lock-washers
- 400HFS Thruster Mounting Bracket Technical Information
$69.00
Purchase

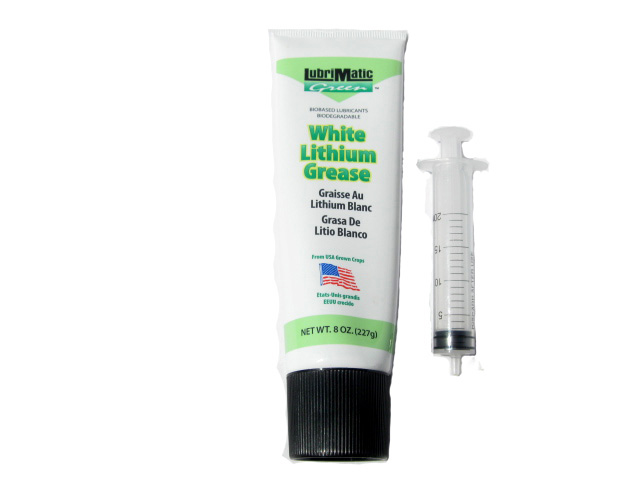

White Lithium Grease

Ships with the following:
- (1) 8oz.(277grams) White Lithium Grease
- (1) Grease applicator
- Note: The grease and applicator kit is required for all 600HF and 400HFS-L Thrusters
$14.95
Purchase

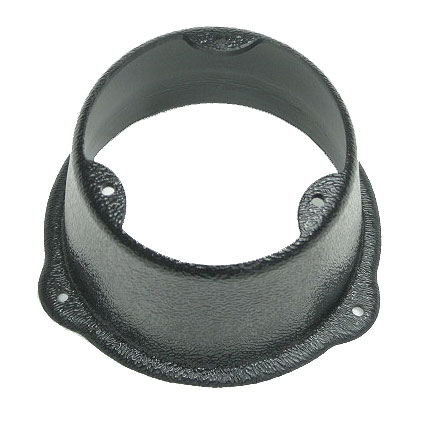

Spare Kort Nozzle

Ships with the following:
- (1) Spare Kort Nozzle
$29.00
