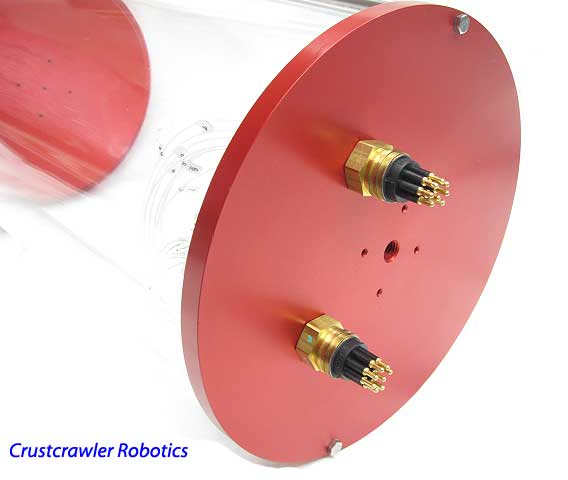

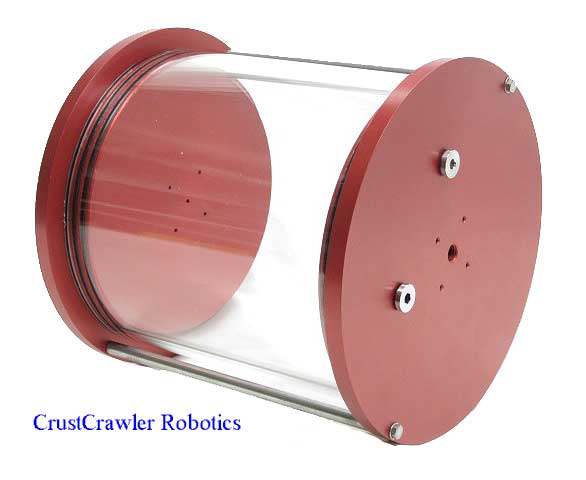

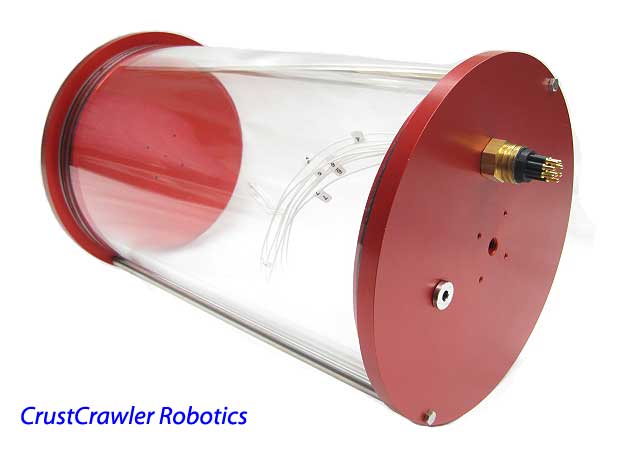

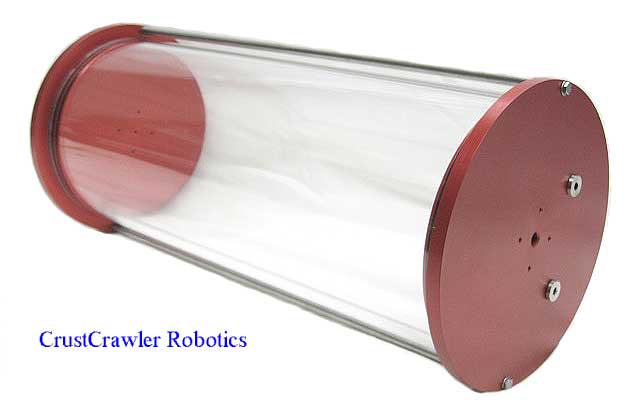

ROV/UROV Waterproof Vessel

We specialize in custom end caps and cable configurations!
Key Features

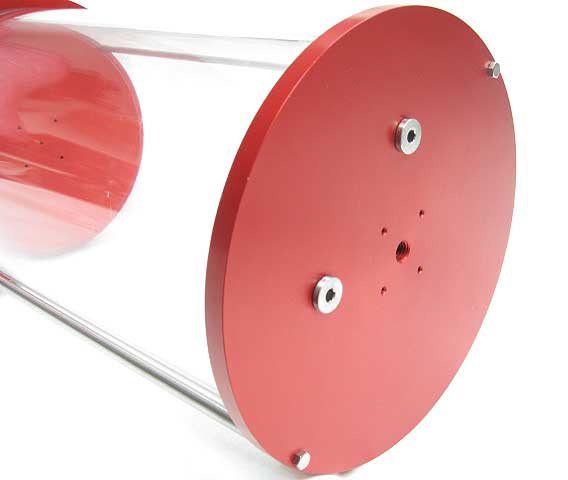

- Precision Machined aluminum end caps
- Available in 7.25in. (18.41cm) 12in. (30.48CM) and 17.25 (43.81cm) Lengths
- Triple layer o-ring configuration on each end cap to ensure a waterproof seal
- Optically clear acrylic cylinders provide excellent clarity for cameras and lighting systems
- Certified to depth ratings of 150 feet (45.72M) and 400 feet(122M)
- Additional threaded holes for additional hull penetrators can be addded (at additional cost)
- Technical Specifications
- Construction Guide
Are you a School, University or Business? Click here to go to our purchase order page with information on how to place your purchase order with Crustcrawler
Pictures
Waterproof Enclosures
-
7.25in. (18.41cm) UROV Waterproof Enclosure (150 ft. (45.72M) Depth Rating)
- (1) 7.25in. (18.41cm) optically clear acrylic cylinder
- (2) Precision machined aluminum end caps

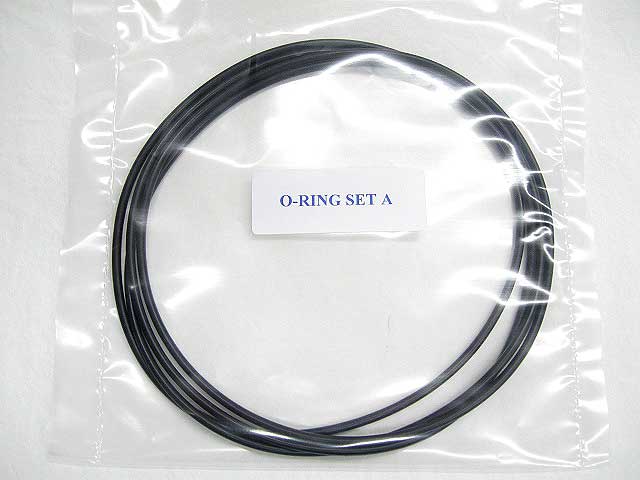

- (1) Set of 0-rings (O-Ring A and O-Ring B Sets)
- (1) Set Retention rods and screw set

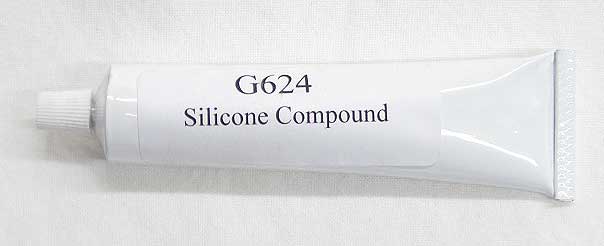

- (1) Novagar G-624 silicon lubricant (3oz tube)
- Technical Specifications
- Waterproof Enclosure IGS Model
- Note: All Sea-Con Microwetcon Hull penetrators are 8 wire and include male connector with 28in.(71.12cm) whip and Delrin locking sleeve
-
7.25in. (18.41cm) UROV Waterproof Enclosure (400ft. (122M) Depth Rating)
- (1) 7.25in. (18.41cm) optically clear acrylic cylinder
- (2) Precision machined aluminum end caps
- (1) Set of 0-rings (O-Ring A and O-Ring B Sets)
- (1) Set Retention rods and screw set
- (1) Novagar G-624 silicon lubricant (3oz tube)
- Technical Specifications
- Waterproof Enclosure IGS Model
- Note: All Sea-Con Microwetcon Hull penetrators are 8 wire and include male connector with 28in.(71.12cm) whip and Delrin locking sleeve
-
12in (30.48cm) UROV Waterproof Enclosure (150 ft. (45.72M) Depth Rating)
- (1) 12in (30.48cm) optically clear acrylic cylinder
- (2) Precision machined aluminum end caps
- (1) Set of 0-rings (O-Ring A and O-Ring B Sets)
- (1) Set Retention rods and screw set
- (1) Novagar G-624 silicon lubricant (3oz tube)
- Technical Specifications
- Waterproof Enclosure IGS Model
- Note: All Sea-Con Microwetcon Hull penetrators are 8 wire and include male connector with 28in.(71.12cm) whip and Delrin locking sleeve
-
12in (30.48cm) UROV Waterproof Enclosure (400 ft. (122M) Depth Rating)
- (1) 12in (30.48cm) optically clear acrylic cylinder
- (2) Precision machined aluminum end caps
- (1) Set of 0-Rings (O-Ring A and O-Ring B Sets)
- (1) Set Retention rods and screw set
- (1) Novagar G-624 silicon lubricant (3oz tube)
- Technical Specifications
- Waterproof Enclosure IGS Model
- Note: All Sea-Con Microwetcon Hull penetrators are 8 wire and include male connector with 28in.(71.12cm) whip and Delrin locking sleeve
-
17.25in (43.81cm) UROV Waterproof Enclosure (150 ft. (45.72M) Depth Rating)
- (1) 17.25in (43.81cm) optically clear acrylic cylinder
- (2) Precision machined aluminum end caps
- (1) Set of 0-Rings (O-Ring A and O-Ring B Sets)
- (1) Set Retention rods and screw set
- (1) Novagar G-624 silicon lubricant (3oz tube)
- Technical Specifications
- Waterproof Enclosure IGS Model
- Note: All Sea-Con Microwetcon Hull penetrators are 8 wire and include male connector with 28in.(71.12cm) whip and Delrin locking sleeve
-
17.25in (43.81cm) UROV Waterproof Enclosure (400 ft. (122M) Depth Rating)
- (1) 17.25in (43.81cm) optically clear acrylic cylinder
- (2) Precision machined aluminum end caps
- (1) Set of 0-Rings (O-Ring A and O-Ring B Sets)
- (1) Set Retention rods and screw set
- (1) Novagar G-624 silicon lubricant (3oz tube)
- Technical Specifications
- Waterproof Enclosure IGS Model
- Note: All Sea-Con Microwetcon Hull penetrators are 8 wire and include male connector with 28in.(71.12cm) whip and Delrin locking sleeve
Accessories
-

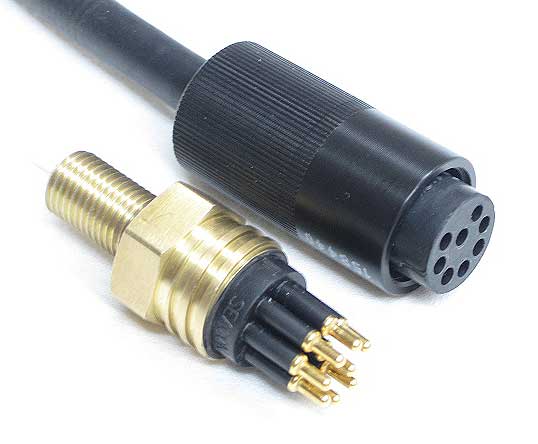

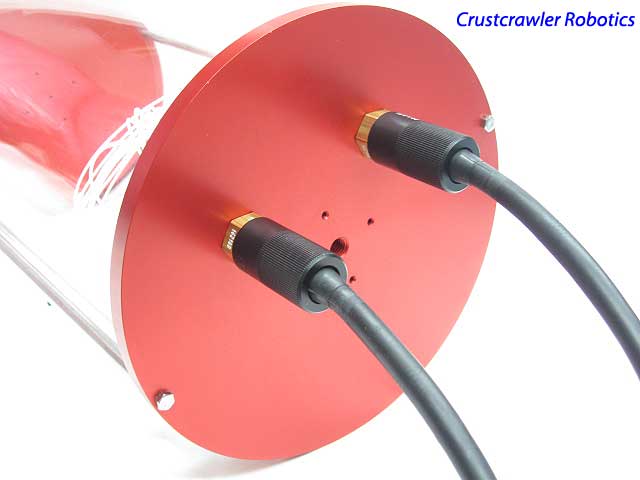

Microwetcon Bulkhead Penetrator Set
- (1) 8-pin Male Bulkhead Penetrator with 8in. (20.32cm) leads (7/16-20 thread)
- (1) 8-pin Female connector with 28in. (71.12cm) whip
- 18 Guage Wires
- (1) Delrin locking sleeve for female connector
- MicroWetcon Data
$169.00Purchase -

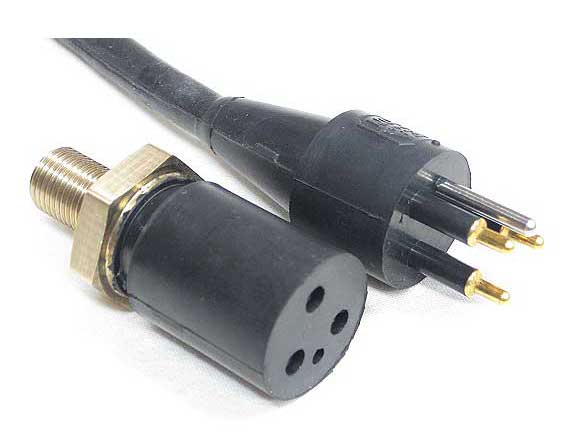

All Wet Series Bulkhead Penetrator Set
- (1) 3-pin Male Bulkhead Penetrator with 18in.(45.72cm) leads(12-20 thread)
- (1) 3-pin Female connector with 28in.(71.12cm) whip
- 16 Guage Wires
- If used with Crustcrawlers Waterproof Vessel, requires machining of 12/20" threaded hole for each bulkhead penetrator
- AllWet Series Hull Penetrator Data
- AllWet Series Male Connector Data
$139.00Purchase -

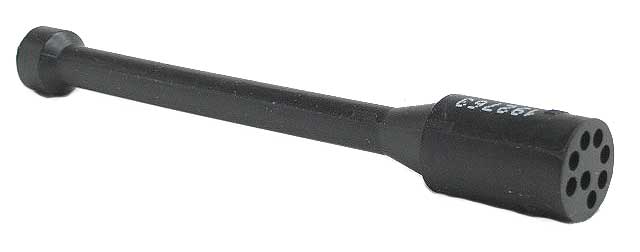

8-Pin Microwetcon Dummy Plug - Female
- (1) 8-pin Microwetcon Dummy Plug - Female
- (1) Protects the Seacon Microwetcon cable ends from dirt, grime and physical damage when not in use.
$14.99Purchase -

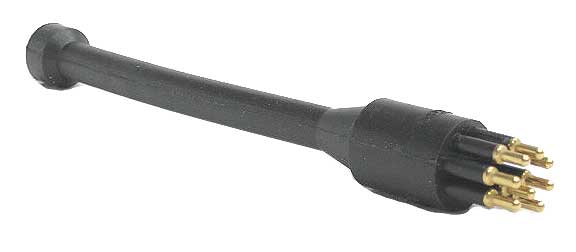

8-Pin Microwetcon Dummy Plug - Male
- (1) 8-pin Microwetcon Dummy Plug - Male
- (1) Protects the Seacon Microwetcon cable ends from dirt, grime and physical damage when not in use.
$24.99Purchase -

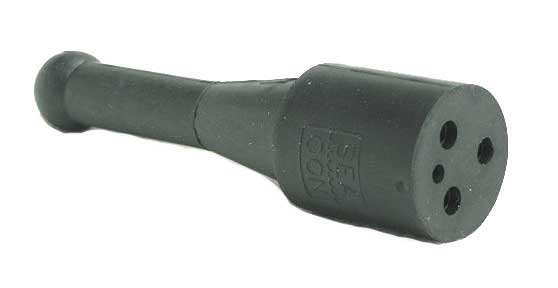

3-Pin All Wet Series Dummy Plug - Female
- (1) 3-pin All Wet Series Dummy Plug - Female
- (1) Protects the Seacon All Wet Series Cable ends from dirt, grime and physical damage when not in use.
$37.99Purchase -
3-Pin All Wet Series Dummy Plug - Male
- (1) 3-pin All Wet Series Dummy Plug - Male
- (1) Protects the Seacon All Wet Series Cable ends from dirt, grime and physical damage when not in use.
$34.99Purchase -

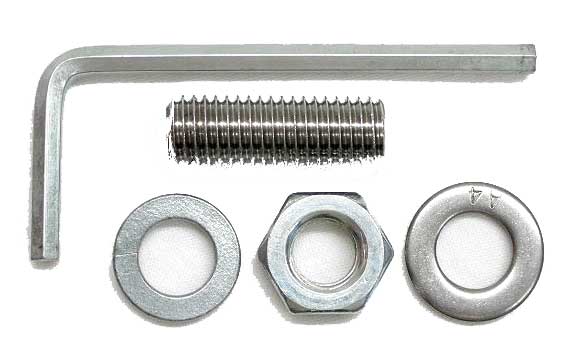

Mounting Kit
- A great option for mounting the waterproof vessel either to a thru-hole assembly or a C-cup shaped bracket
- (2) sets of 10mm flat point set screw, washer and lock washer
- (1) 5mm L-Type Hex key
$14.99Purchase -
-
